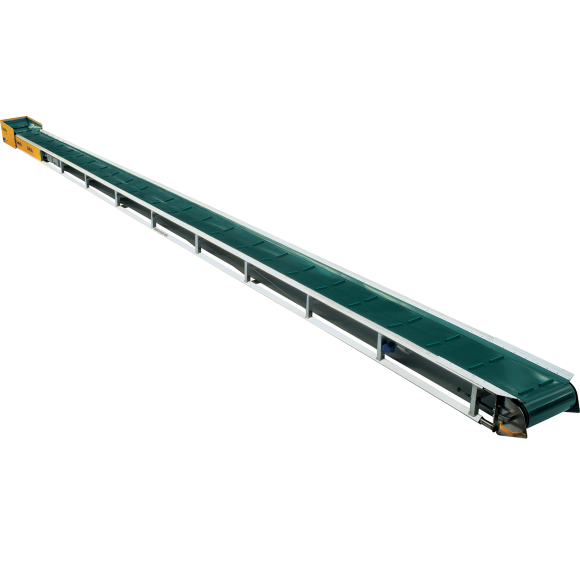

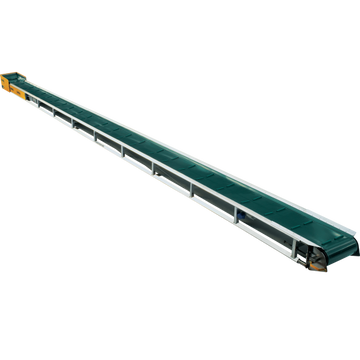

Belt Conveyor 8.0 m
THE LONGEST LIGHTWEIGHT BELT CONVEYOR ON THE MARKET
As the only producer on the market, we produce 8M long belt conveyors!
Compared to traditional belt conveyors with rubber belts, our belts are made of PVC, which is a more durable and lightweight material, that furthermore requires minimal maintenance. Our PVC belts - with or without carriers - can handle transportation of all kinds of materials, including building waste, rubble, wood chips, soil, sand, gravel, concrete etc.
- And it's easy to maintain. The holes in the steel plates under the PVC belt cool down both the machine itself and the belt. In addition, they ensure that the machine cleans itself during operation.
We have created the steel plates using a unique modular system. This means that if a part breaks, you only have to replace that specific part, as opposed to the entire full-length plate. This is both cheaper and more convenient.
Our belt conveyors are the lightest on the market. Due to the open aluminum frame, we have achieved a very low weight on the entire unit, which in turn makes it an extremely portable conveyor system.
Our 8.0 m belt conveyor can therefore be used by one operator, who can easily move the machine around to where it is required. For transportation over greater distances, i.e. from one end of a construction site to the other – we can equip the unit with truck pockets, to facilitate loading onto a vehicle.
Our belt conveyors come with a two-wheel undercarriage as standard. The undercarriage can be adjusted and mounted anywhere on the frame, in order to adjust the angle so that it suits your specific job needs.
Our 8m belt conveyor can reach a height of 6 meters.
Belt Conveyor
The Only 8M Belt Conveyor on the Market
SoRoTo is the only manufacturer producing 8M belt conveyors — no competitor makes one at this length.
Reaches a Working Height of 6 Metres
At full inclination the 8.0M reaches 6 metres — the elevation most multi-storey jobs require.
240V / 110V
Runs on standard site power in any configuration.
Modular Steel Plate System
If a plate section fails, replace only that piece — not the full-length plate. Faster and cheaper.
134 kg with Truck Pocket Option
Moves by one person at 134 kg; add truck pockets for forklift handling across large sites.
Serial Connection Ready
Still linkable in series for extended-run configurations that need more distance or a direction change.
Only 8M model made
No market alternative at this length
6M reach height
Multi-storey elevation
240V / 110V
Standard site power
Modular plates
Replace sections, not full plate
134 kg
Truck pockets for forklift handling
Series link
Extended runs or direction change
| Belt Conveyor | 8.0 m |
| Motor | 240 V |
| Output | 0.55 kW |
| Speed | 32 cm/sec |
| Lenght | 800 cm |
| Belt Width | 34 cm |
| Frame Width | 48 cm |
| Height | 23 cm |
| Weight | 134 kg |
| Max. Inclination | 30/45° |
