CMB 115

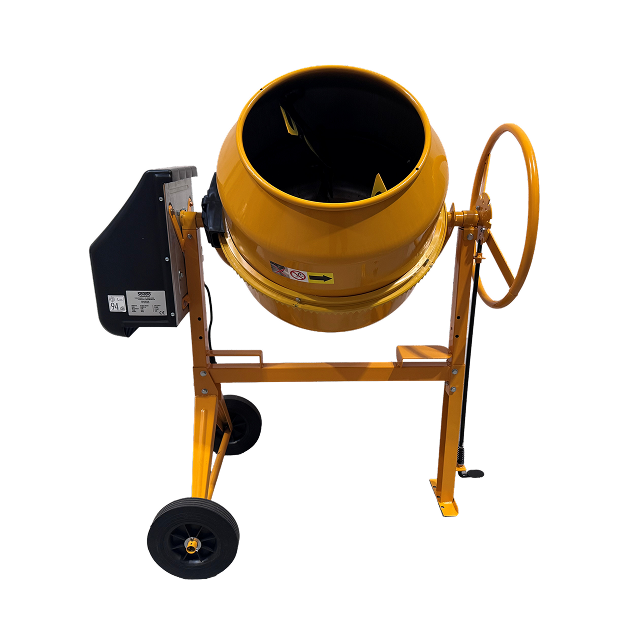

"The CMB 115 is the smallest drum mixer in our new Basic series – a simple, lightweight concrete mixer for occasional use, DIY projects and small jobs around the home. With a mixing capacity of 115 L and a drum capacity of 145 L, it mixes one 20 kg bag per batch, giving an output of approx. 1.0 m³/hour.

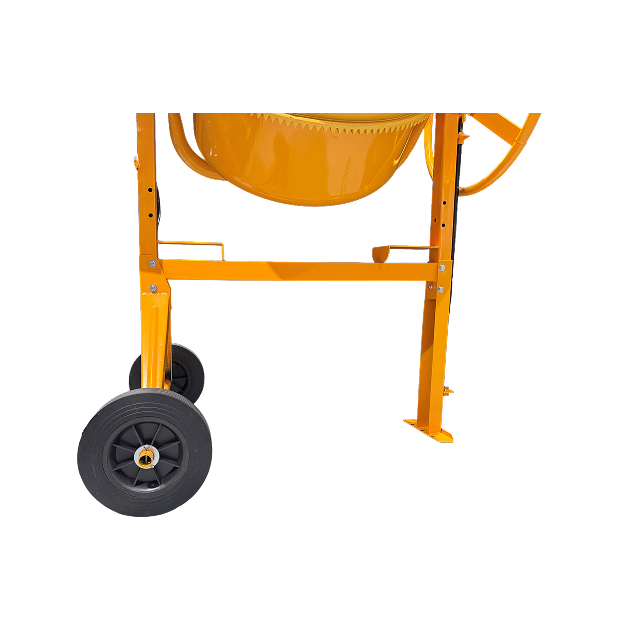

The frame and drum are made of painted steel, and the drum has a reinforced rim and 2 double mixing blades. The drum is tilted with a handwheel and locked with a foot pedal, so you have both hands free when loading and emptying. Grease nipples on the drum and tilting shafts reduce wear, and fork pockets make it easy to lift the mixer with a forklift.
The CMB 115 runs on a standard 240 V socket (850 W). The gear ring is made of polyamide, which keeps the weight down to 46 kg without the motor – ideal when the mixer is used now and then. For daily professional use, we recommend our CME or CMS series with a cast iron gear ring."
CMB Concrete Mixer Series Key Features
Built for Occasional Use
Designed for DIY projects and small jobs around the home – not for daily professional cycles.
115L Mixing Capacity
One 20 kg bag per batch. Approx. 1.0 m³/hour.
240V Standard Socket
Single-phase 850 W motor with IP44 protection. Plugs straight into a standard socket.

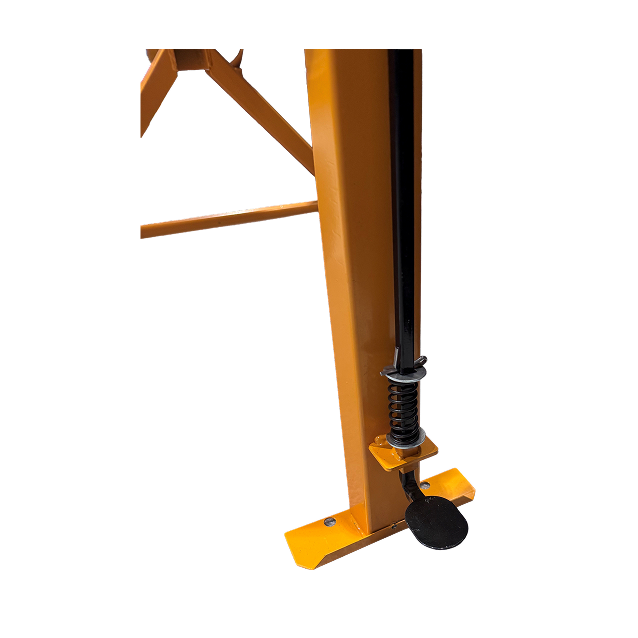

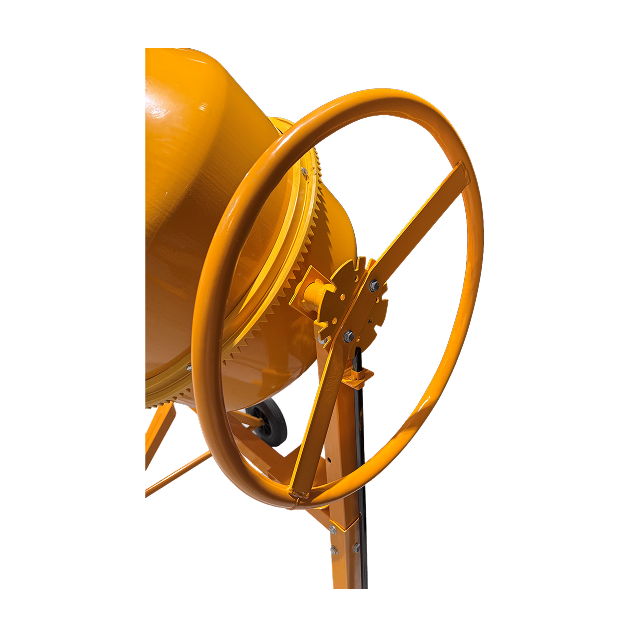

Handwheel and Foot Pedal Lock
Tilt the drum with the handwheel and lock it with the foot pedal – both hands free when loading and emptying.
Reinforced Rim and 2 Double Mixing Blades
Painted steel frame and drum with a reinforced rim for even mixing and a long service life.

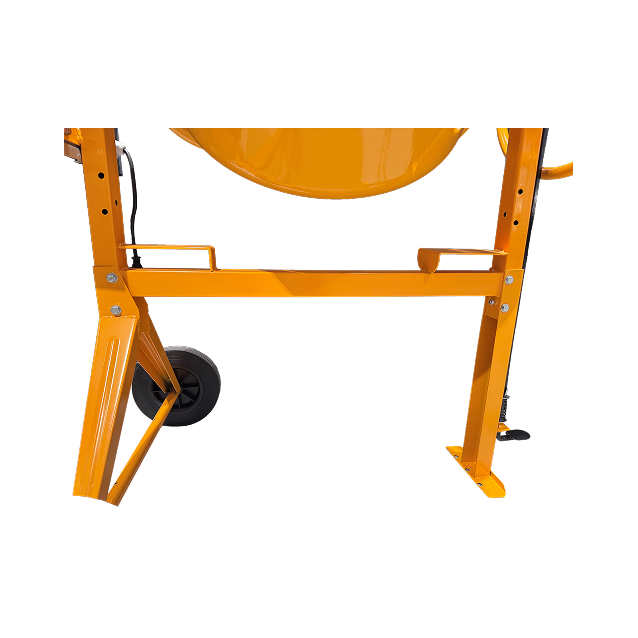

Grease Nipples and Fork Pockets
Built-in service points on the drum and tilting shafts, and fork pockets for lifting with a forklift.
115L
One 20 kg bag per batch
Occasional use
DIY and small jobs
240V / 850 W
Standard socket, IP44
Foot pedal lock
Hands free when loading
Reinforced rim
2 double mixing blades
Forklift ready
Fork pockets as standard
| Cement Mixers | CMB 115 |
| Motor | 240V / 850 W |
| Drum Capacity | 145L |
| Mixing Capacity | 115L |
| Height | 140 cm |
| Width/Length | 85/126 cm |
| Weight | 46 kg |
