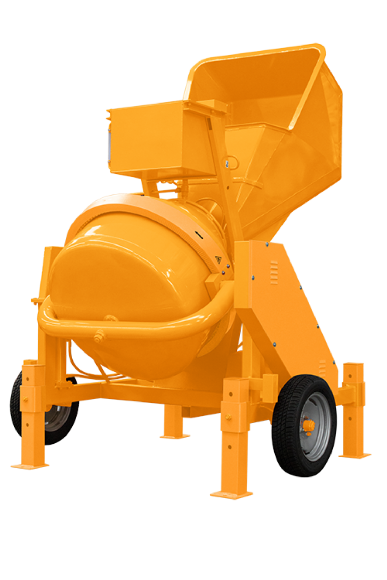

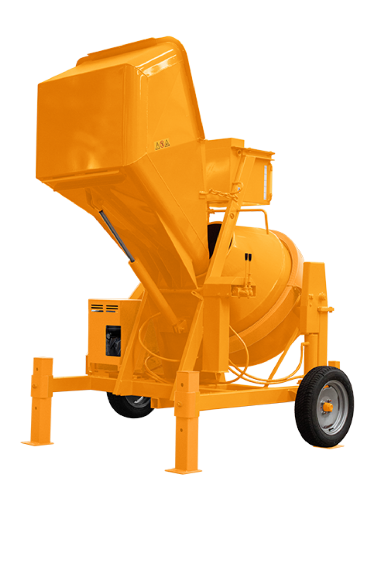

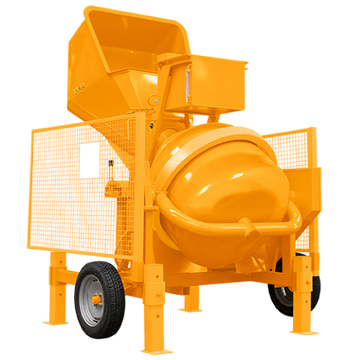

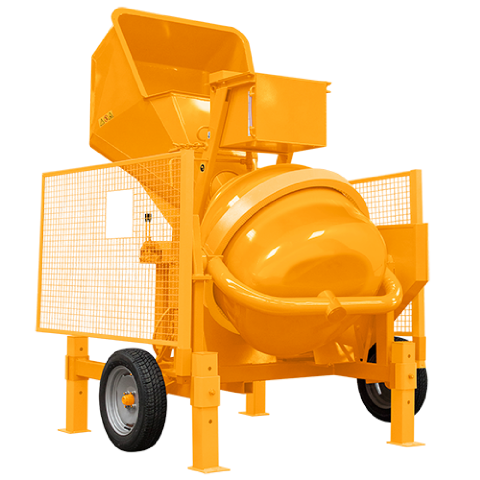

CMH 320

The CMH 320 is more of a mixing system than an actual drum mixer, since automatic water dosage and weighing systems can be incorporated. It has a hydraulic feeding box. The CMH 320 has a mixing capacity of 320L, and a drum capacity of 360L, making it suitable for medium-sized construction sites. The CMH320 mixing system weighs 560 kg, making it a heavy machine to maneuver around. It has galvanized legs that can be lowered, and it is often fixed standing on these legs due to its heavy weight. With its 320L production, the CMH 320 can produce 8m3/hour.

CMH 320

CMH 320

Regular price £0.00 GBP
Sale price £0.00 GBP Regular price
Unit price
Hydraulic Feeding Box

Hydraulic Feeding Box

The defining feature of the CMH series — materials are fed into the drum hydraulically, not by manual shoveling or a hand-operated tray.

A Mixing System, Not Just a Drum Mixer

A Mixing System, Not Just a Drum Mixer

Designed to integrate with automatic water dosage and weighing systems — a production component built for a larger setup.

8 to 12 m³/Hour Output

8 to 12 m³/Hour Output

320L at 8 m³/hour, 420L at 12 m³/hour — significantly higher throughput than manual drum mixing at comparable capacities.

320L or 420L Mixing Capacity

320L or 420L Mixing Capacity

Suited to medium to large site production demands.

Galvanized Lowerable Legs

Galvanized Lowerable Legs

Legs lower for stable, fixed operation — typically installed as a stationary production unit on site.

7.5 Hp Motor

7.5 Hp Motor

Rated for continuous high-cycle production loads.

Hydraulic feeding box

Hydraulic feeding box

Mechanized loading — no manual shoveling

Production system

Production system

Integrates water dosing and weighing

8-12 m³/hour

8-12 m³/hour

High-throughput output

320L or 420L

320L or 420L

Medium to large site production

Galvanized legs

Galvanized legs

Fixed installation

7.5 Hp

7.5 Hp

Continuous production-rated

Cement Mixers CMH 320
Motor 7.5 Hp
Drum Capacity 360 L
Mixing Capacity 320 L
Height 280 cm
Width/Length 198/182 cm
Weight 560 kg
