ITEM NO.: 200000

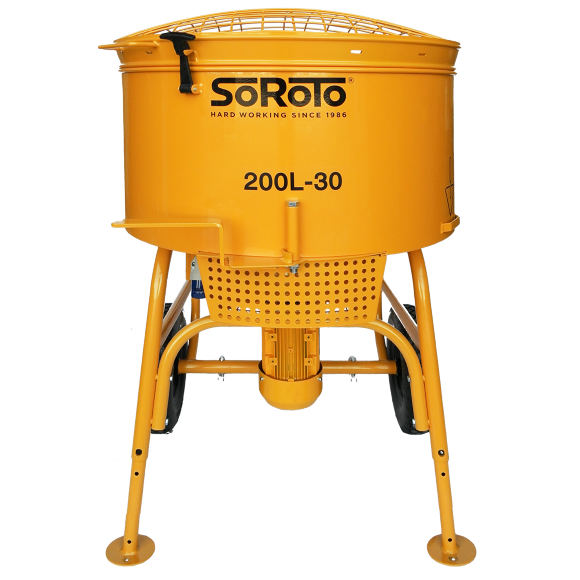

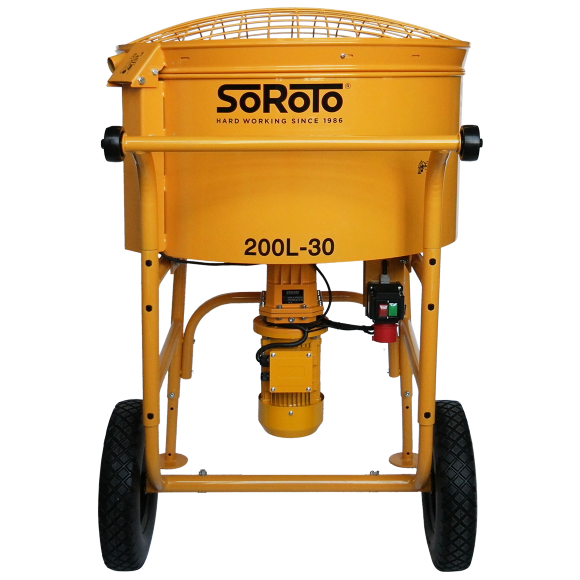

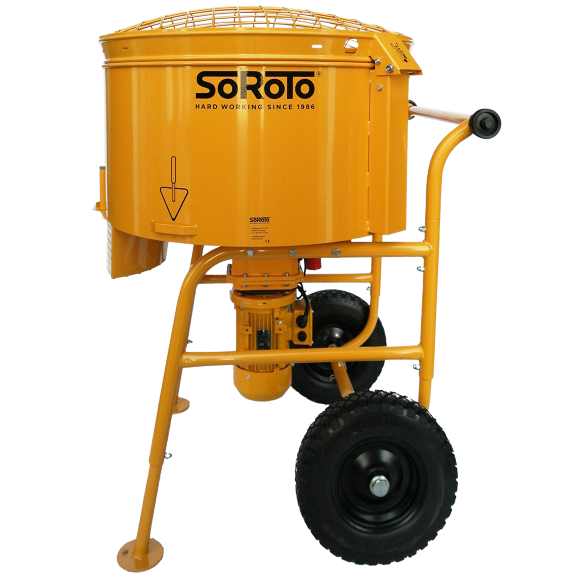

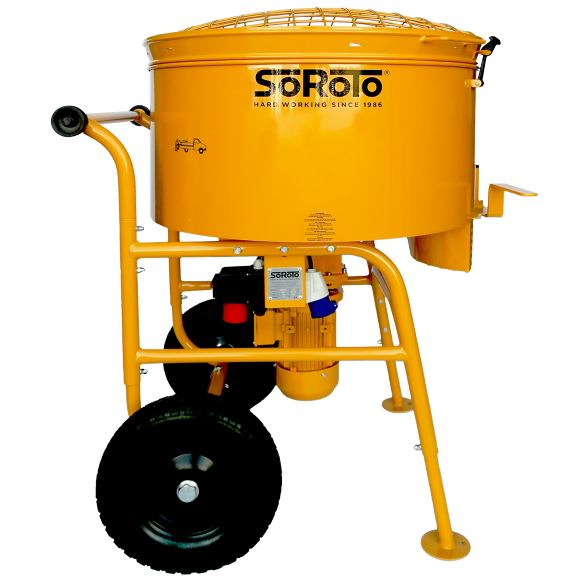

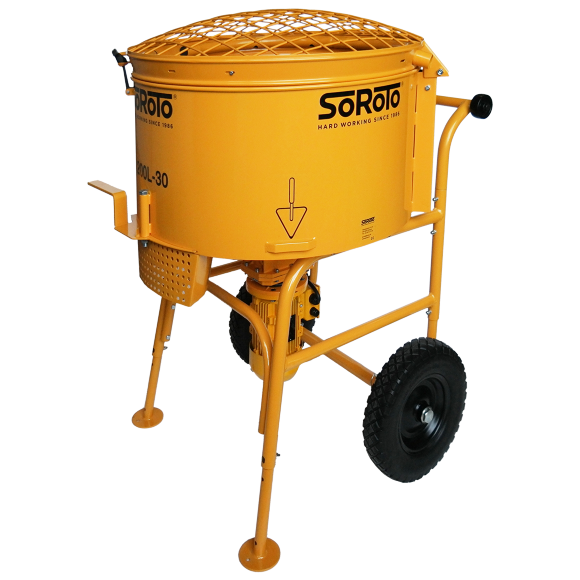

Forced Action Mixer 200 L

A LARGE MACHINE THAT IS STILL LIGHT AND HANDY

SOROTO® 200 L IS DESIGNED AS A STRONG FUSION BETWEEN THE 400V STRONG 300 L, AND THE TRANSPORT-MANAGEABLE DESIGN KNOWN FROM THE SMALLER SOROTO® MACHINES.

With the ergonomicaly designed frame it is incredibly easy to handle in spite of its size.

The 200 L Forced Action Mixers runs on 400 V and has an optional 230V outlet for e.g. working light, vacuum cleaner, mixer or conveyor belts.

Just like the other SoRoTo® models this mixer is equipped with telescopic legs for setting the appropriate height.

In need of a spare part? Go to accessories

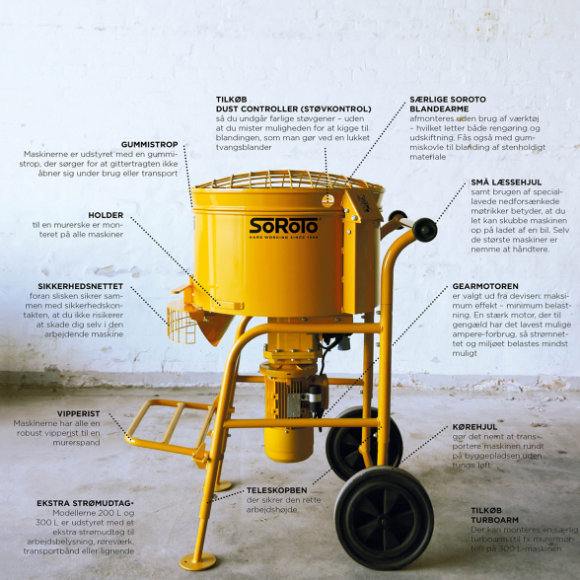

Applications

Mixer arms can be removed without tools by cleaning if you need more space.

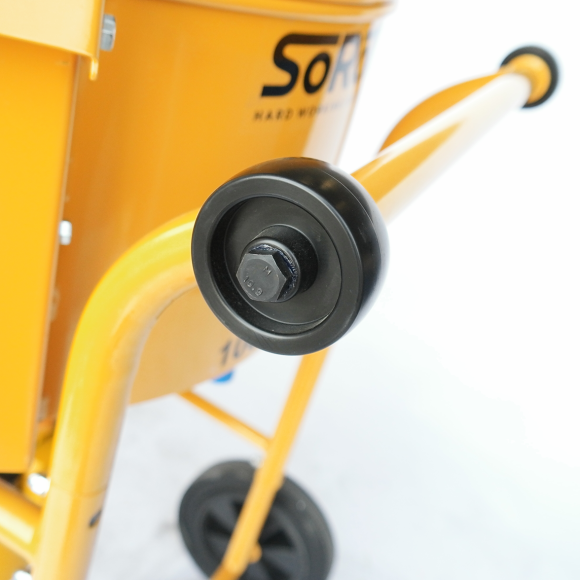

By tipping the mixer it can easily be loaded onto a car by means of the small wheels.
400 volt motor protection with a 230 volt outlet

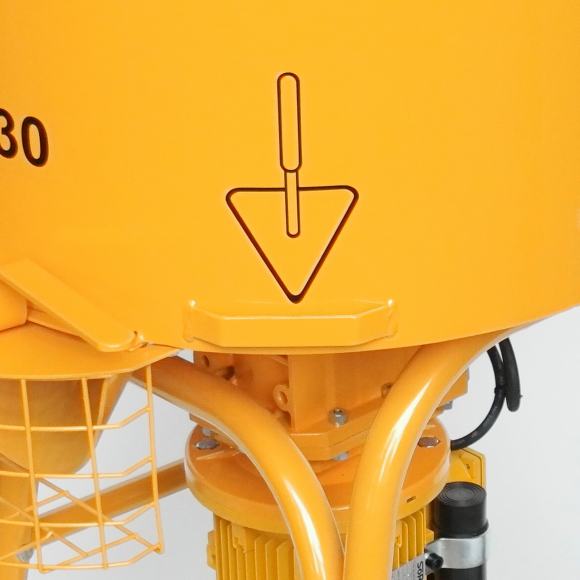

After 3-5 minutes the perfect mix is discharged through mixer gate at bottom of drum.
The grid lid is mounted on hinges and equipped with automatic mechanical switch to meet safety regulations.
Rubber strap secures the charging hopper during transportation.
In case of wear you can replace only the single arm or mixing paddles as 300 L.
Detachable wheels.

Find useful accessories for your forced action mixers here.

Are you looking for a spare part you can find the blow up drawings incl. item no.s in different languages right here.

DOWNLOAD DATA SHEET FOR THE FORCED ACTION MIXER 200L

Forced Action Mixer	200 L

Motor	400 V / 110V
Output	2.2 kW
Weight	170 kg
RPM	30
Drum Capacity	220 L
Mixing Capacity	200 L
Height	128-138 cm
Width/Length	89/104 cm

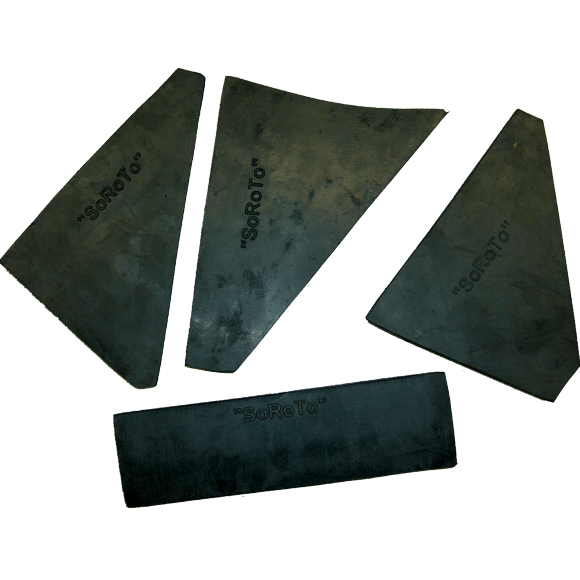

Standard blades	rubber

Forced Action Mixer 200 L
